Chart Plugin tests

This page attempts to demonstrate/test many of the possible combinations of various parameters of the ChartPlugin. There are too many combinations of parameters to test all possible combinations, so only a few are shown here.


Tables used by tests

The following 4 tables are used for testing purposes.

Table #1

Nr Period Min Acceptable Target Exceptional Actual Comment
1 Start 0 50 70 90 39 initial measure
2 FY03-Q1 0 35 75 95 55
3 FY03-Q2 0 35 75 95 36
4 FY03-Q3 0 40 80 100 62
5 FY03-Q4 0 40 80 100 72
6 FY04-Q1 0 40 80 100 68

Table #2

This table is the same as the 1st except that the data is row oriented instead of column oriented.

Nr 1 2 3 5 5 6
Period Start FY03-Q1 FY03-Q2 FY03-Q3 FY03-Q4 FY04-Q1
Min 0 0 0 0 0 0
Acceptable 50 35 35 40 40 40
Target 70 75 75 80 80 80
Exceptional 90 95 95 100 100 100
Actual 39 55 36 62 72 68
Comment initial measure

Table #3

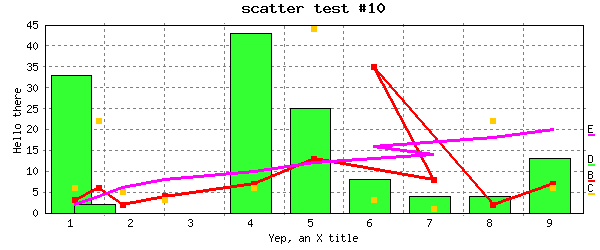

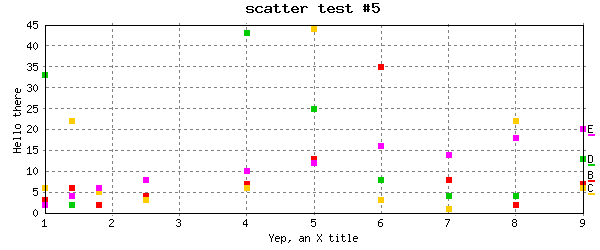

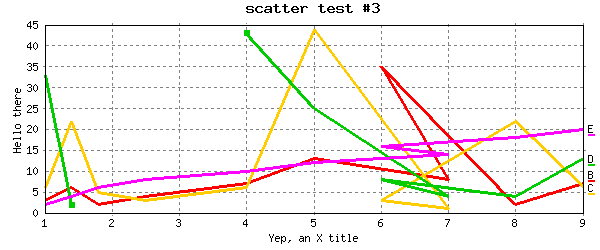

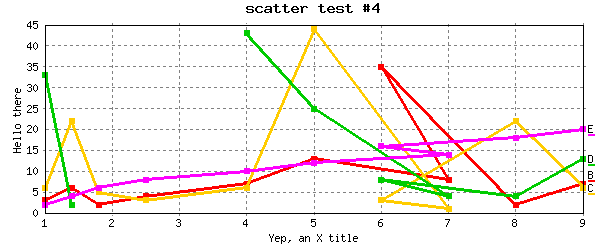

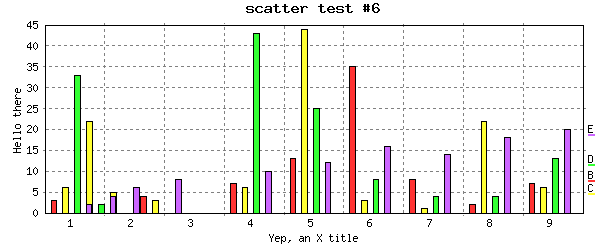

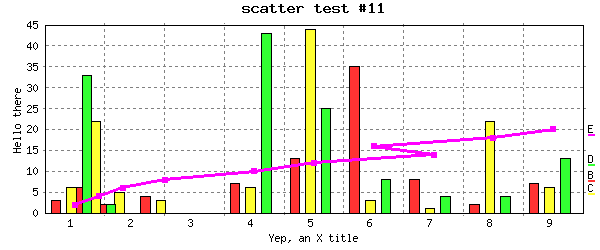

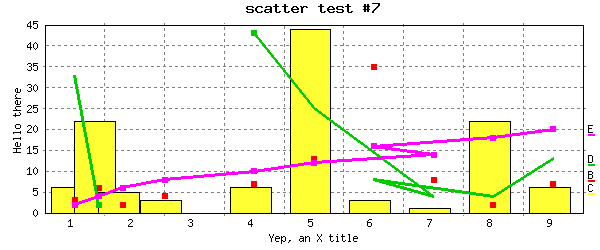

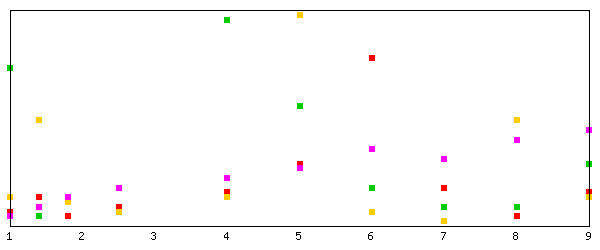

This table is used for showing scatter graphs.

A B C D E
1 3 6 33 2
1.4 6 22 2 4
1.8 2 5   6
2.5 4 3   8
4 7 6 43 10
5 13 44 25 12
7 8 1 4 14
6 35 3 8 16
8 2 22 4 18
9 7 6 13 20

Table #4

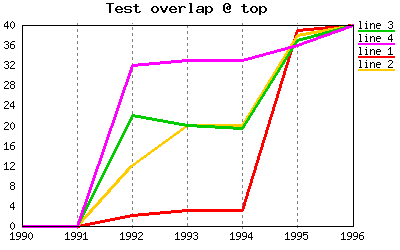

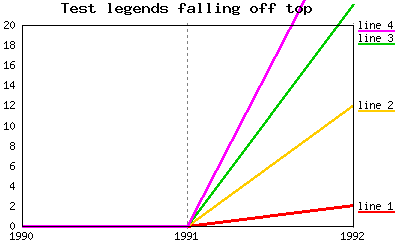

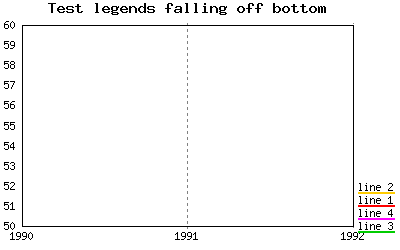

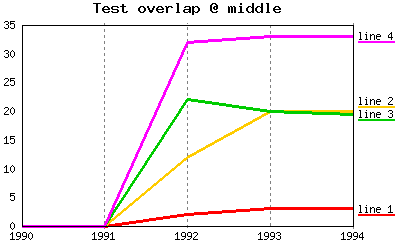

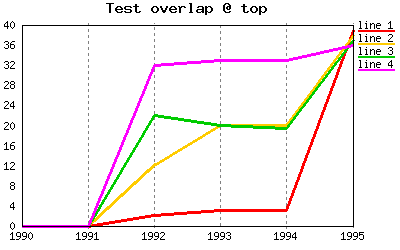

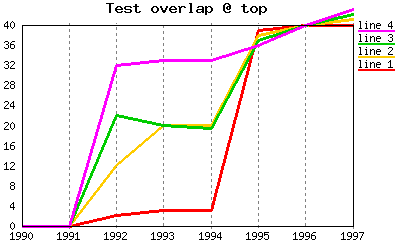

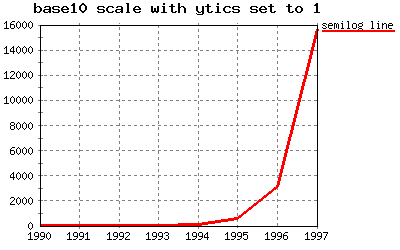

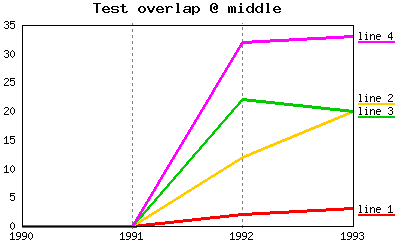

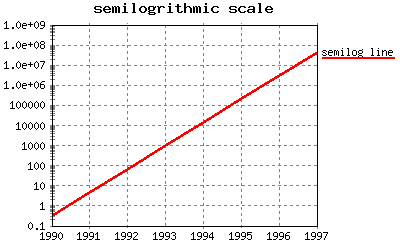

This table is used for various legend placement tests as well as logarithmic data.

  line 1 line 2 line 3 line 4 sparse 1 sparse 2 semilog line
1990 0 0 0 0 0   0.2
1991 0 0 0 0   35 1
1992 2 12 22 32 35.5   5
1993 3 20 20 33 38 35.2 25
1994 3 20 19.5 33 38.1   125
1995 39 38 37 36   35.8 625
1996 40 40 40 40 38.1   3125
1997 40 41 42 43   35 15625

General tests

line tests

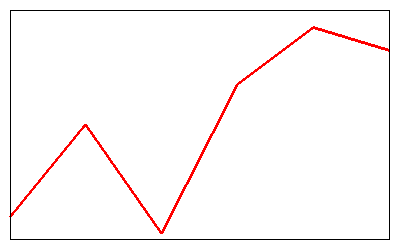

Simple single line. No other markings at all

%CHART{data="R2:C7..R7:C7" name="line_1" table="table1" type="line" ygrid="off"}%

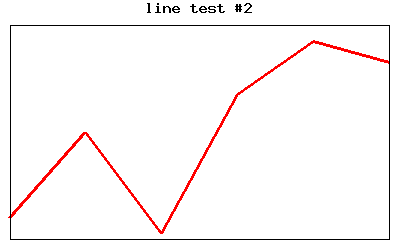

Simple single line, add title.

%CHART{data="R2:C7..R7:C7" name="line_2" table="table1" title="line test #2" type="line" ygrid="off"}%

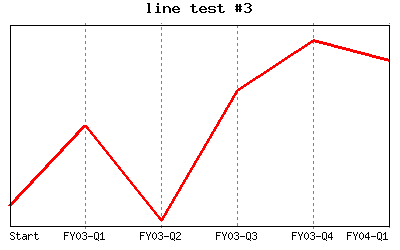

Add X axis to above

%CHART{data="R2:C7..R7:C7" name="line_3" table="table1" title="line test #3" type="line" xaxis="R2:C2..R7:C2" ygrid="off"}%

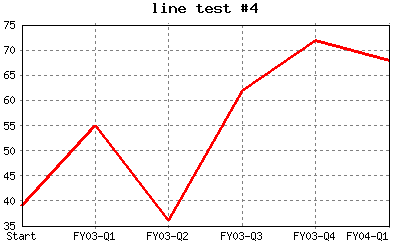

Add Y axis to above

%CHART{data="R2:C7..R7:C7" name="line_4" table="table1" title="line test #4" type="line" xaxis="R2:C2..R7:C2" yaxis="on"}%

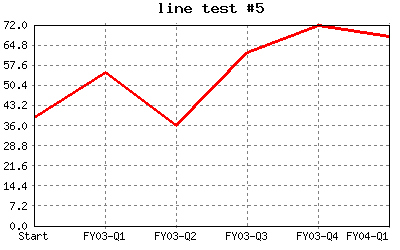

Add ymin = 0 to above

%CHART{data="R2:C7..R7:C7" name="line_5" table="table1" title="line test #5" type="line" xaxis="R2:C2..R7:C2" yaxis="on" ymin="0"}%

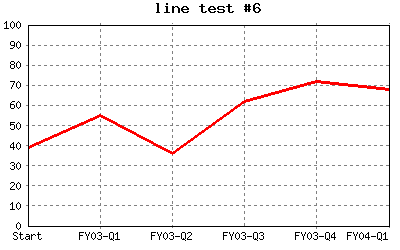

Add ymax = 100 to above

%CHART{data="R2:C7..R7:C7" name="line_6" table="table1" title="line test #6" type="line" xaxis="R2:C2..R7:C2" yaxis="on" ymax="100" ymin="0"}%

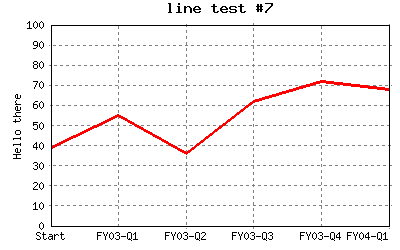

Add ylabel "Hello there" to above

%CHART{data="R2:C7..R7:C7" name="line_7" table="table1" title="line test #7" type="line" xaxis="R2:C2..R7:C2" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

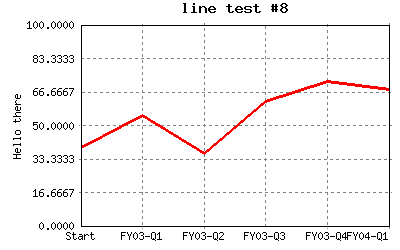

Add numygrids="5" above

%CHART{data="R2:C7..R7:C7" name="line_8" numygrids="5" table="table1" title="line test #8" type="line" xaxis="R2:C2..R7:C2" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

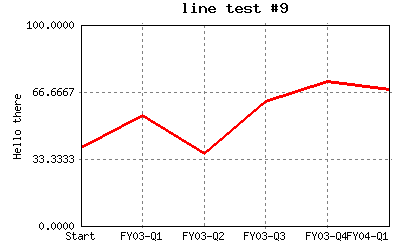

Change numygrids="2" above

%CHART{data="R2:C7..R7:C7" name="line_9" numygrids="2" table="table1" title="line test #9" type="line" xaxis="R2:C2..R7:C2" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

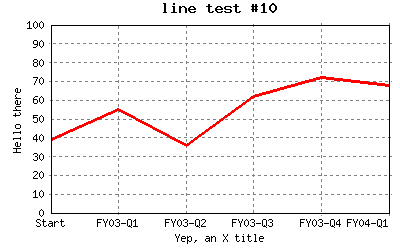

Remove numygrids from above and add xlabel "Yep, an X title" to above

%CHART{data="R2:C7..R7:C7" name="line_10" table="table1" title="line test #10" type="line" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

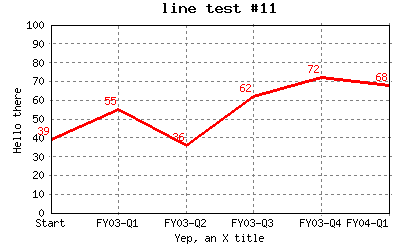

Add datalabel = on to above

%CHART{data="R2:C7..R7:C7" datalabel="on" name="line_11" table="table1" title="line test #11" type="line" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

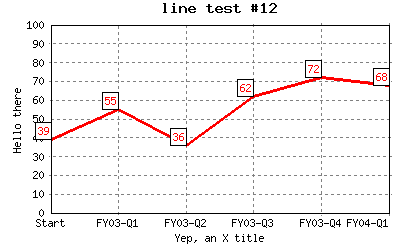

Add datalabel = box to above

%CHART{data="R2:C7..R7:C7" datalabel="box" name="line_12" table="table1" title="line test #12" type="line" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

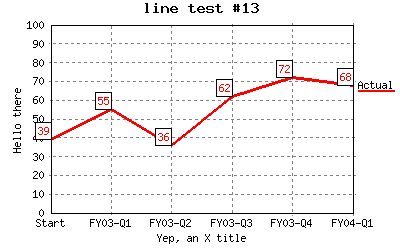

Add legend to above

%CHART{data="R2:C7..R7:C7" datalabel="box" legend="R1:C7..R1:C7" name="line_13" table="table1" title="line test #13" type="line" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

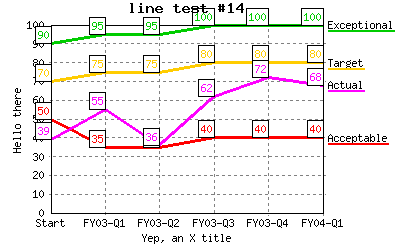

Add additional data lines to above and update legend

%CHART{data="R2:C4..R7:C7" datalabel="box" legend="R1:C4..R1:C7" name="line_14" table="table1" title="line test #14" type="line" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

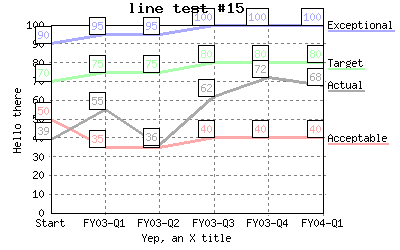

Specify different colors to above. Now are lite red, lite green, lite blue, gray instead of defaults

%CHART{colors="#ffAAAA,#AAffAA,#AAAAff,#AAAAAA" data="R2:C4..R7:C7" datalabel="box" legend="R1:C4..R1:C7" name="line_15" table="table1" title="line test #15" type="line" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

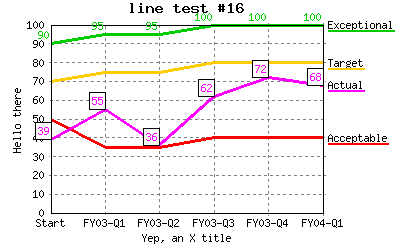

Restore default colors and change datalabel such that only the last line has values in boxes and the 2nd to last has values (no box) to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="line_16" table="table1" title="line test #16" type="line" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

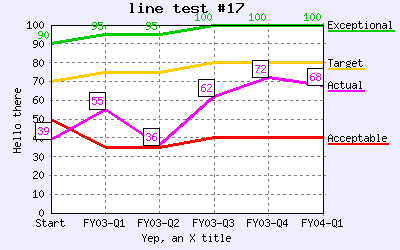

Same as above except specify bgcolor="#EEEEEE"

=%CHART{bgcolor="#EEEEFF" data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="line_17" table="table1" title="line test #17" type="line" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

Change bgcolor="#FFFFFF #EEEEEE"

=%CHART{bgcolor="#FFFFFF #EEEEFF" data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="line_18" table="table1" title="line test #18" type="line" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

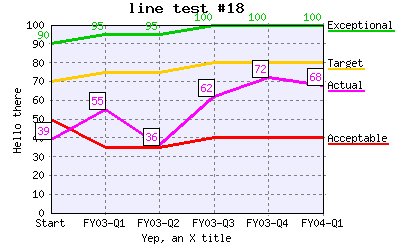

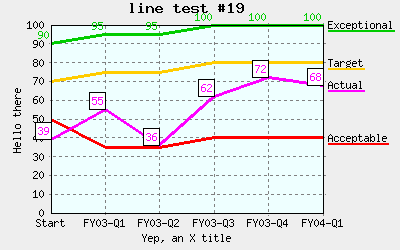

Change bgcolor="#EEEEEE #EEFFEE"

=%CHART{bgcolor="#EEEEEE #EEFFFF" data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="line_19" table="table1" title="line test #19" type="line" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

Restore bgcolor and change ygrid = on to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="line_20" table="table1" title="line test #20" type="line" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ygrid="on" ylabel="Hello there" ymax="100" ymin="0"}%

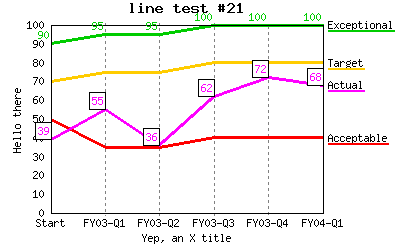

Change ygrid = off to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="line_21" table="table1" title="line test #21" type="line" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

Change xgrid = on to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="line_22" table="table1" title="line test #22" type="line" xaxis="R2:C2..R7:C2" xgrid="on" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

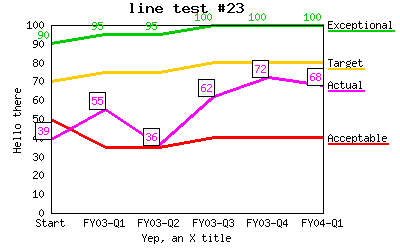

Change xgrid = off to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="line_23" table="table1" title="line test #23" type="line" xaxis="R2:C2..R7:C2" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

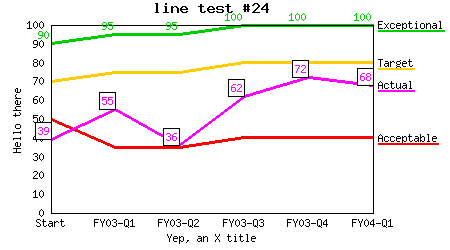

Change width = 450

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="line_24" table="table1" title="line test #24" type="line" width="450" xaxis="R2:C2..R7:C2" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

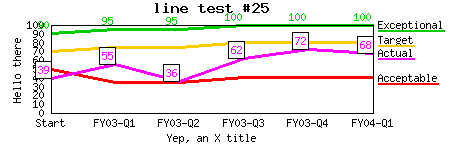

Change height = 150

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" height="150" legend="R1:C4..R1:C7" name="line_25" table="table1" title="line test #25" type="line" width="450" xaxis="R2:C2..R7:C2" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

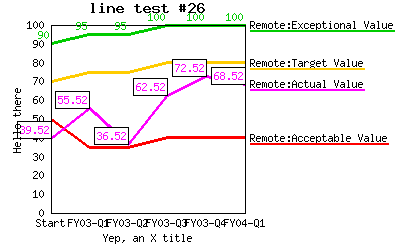

Default width/height. Get data from ChartPluginTestsRemote. Specify table="2" on new topic = ChartPluginTestsRemote. Actual values should show up incremented by 0.52 since data is from a different topic page and the 0.02 denotes the data is from the 2nd table. Legend should show up with Remote since the data on the remote page was set up to include Remote in the legends

%CHART{data="R4:C2..R7:C7" datalabel="off off on box" legend="R4:C1..R7:C1" name="line_26" table="2" title="line test #26" topic="ChartPluginTestsRemote" type="line" xaxis="R2:C2..R2:C7" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

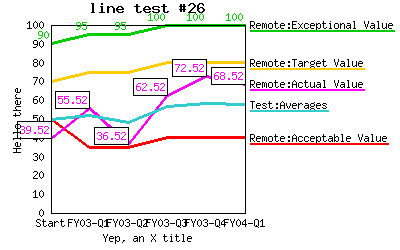

Same as above except add an additional data set (averages) that is calculated by %CALC%. Also shows that since only 4 default line colors are specified, the 5th line reuses the 1st default line color.

%CHART{data="R4:C2..R8:C7" datalabel="off off on box" legend="R4:C1..R8:C1" name="line_27" table="2" title="line test #26" topic="ChartPluginTestsRemote" type="line" xaxis="R2:C2..R2:C7" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

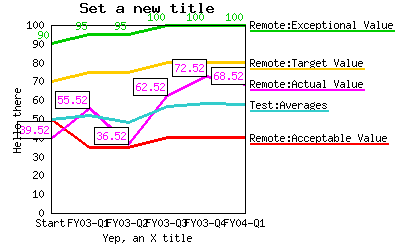

Set title = "Set a new title" to above

%CHART{data="R4:C2..R8:C7" datalabel="off off on box" legend="R4:C1..R8:C1" name="line_28" table="2" title="Set a new title" topic="ChartPluginTestsRemote" type="line" xaxis="R2:C2..R2:C7" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

Same as above except add the alt tag = This is the alt tag

%CHART{alt="This is the alt tag" data="R4:C2..R8:C7" datalabel="off off on box" legend="R4:C1..R8:C1" name="line_29" table="2" title="Set a new title" topic="ChartPluginTestsRemote" type="line" xaxis="R2:C2..R2:C7" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

This is the alt tag

area tests

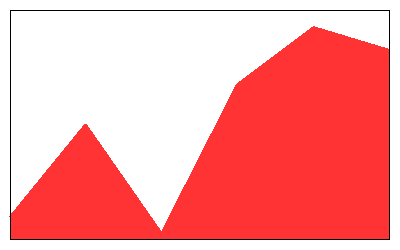

Simple single area. No other markings at all

%CHART{data="R2:C7..R7:C7" name="area_1" table="table1" type="area" ygrid="off"}%

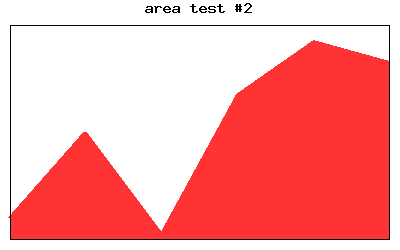

Simple single area, add title.

%CHART{data="R2:C7..R7:C7" name="area_2" table="table1" title="area test #2" type="area" ygrid="off"}%

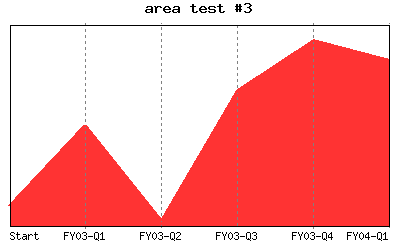

Add X axis to above

%CHART{data="R2:C7..R7:C7" name="area_3" table="table1" title="area test #3" type="area" xaxis="R2:C2..R7:C2" ygrid="off"}%

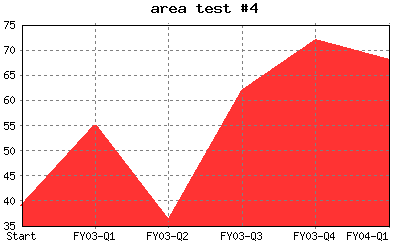

Add Y axis to above

%CHART{data="R2:C7..R7:C7" name="area_4" table="table1" title="area test #4" type="area" xaxis="R2:C2..R7:C2" yaxis="on"}%

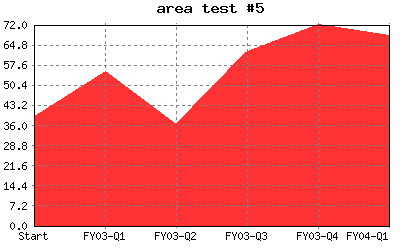

Add ymin = 0 to above

%CHART{data="R2:C7..R7:C7" name="area_5" table="table1" title="area test #5" type="area" xaxis="R2:C2..R7:C2" yaxis="on" ymin="0"}%

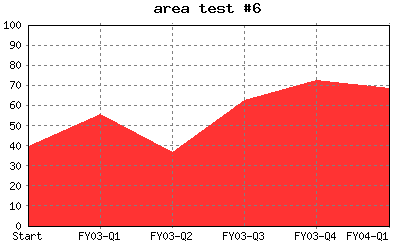

Add ymax = 100 to above

%CHART{data="R2:C7..R7:C7" name="area_6" table="table1" title="area test #6" type="area" xaxis="R2:C2..R7:C2" yaxis="on" ymax="100" ymin="0"}%

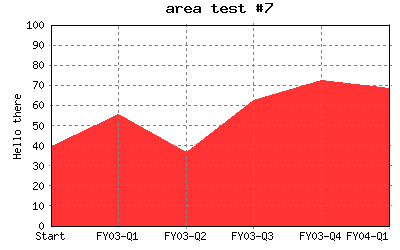

Add ylabel "Hello there" to above

%CHART{data="R2:C7..R7:C7" name="area_7" table="table1" title="area test #7" type="area" xaxis="R2:C2..R7:C2" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

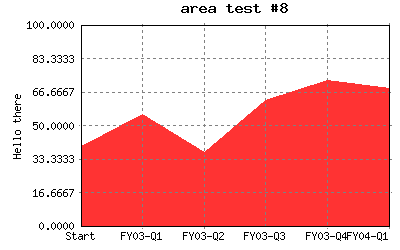

Add numygrids="5" above

%CHART{data="R2:C7..R7:C7" name="area_8" numygrids="5" table="table1" title="area test #8" type="area" xaxis="R2:C2..R7:C2" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

Change numygrids="2" above

%CHART{data="R2:C7..R7:C7" name="area_9" numygrids="2" table="table1" title="area test #9" type="area" xaxis="R2:C2..R7:C2" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

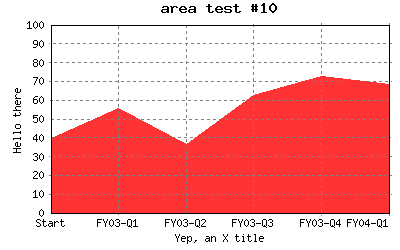

Remove numygrids from above and add xlabel "Yep, an X title" to above

%CHART{data="R2:C7..R7:C7" name="area_10" table="table1" title="area test #10" type="area" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

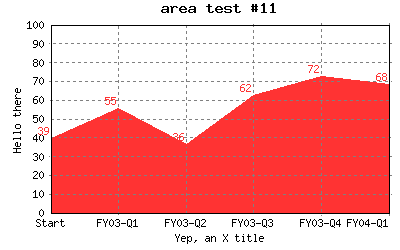

Add datalabel = on to above

%CHART{data="R2:C7..R7:C7" datalabel="on" name="area_11" table="table1" title="area test #11" type="area" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

Add datalabel = box to above

%CHART{data="R2:C7..R7:C7" datalabel="box" name="area_12" table="table1" title="area test #12" type="area" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

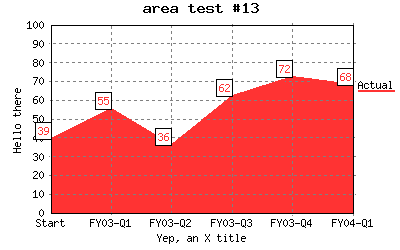

Add legend to above

%CHART{data="R2:C7..R7:C7" datalabel="box" legend="R1:C7..R1:C7" name="area_13" table="table1" title="area test #13" type="area" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

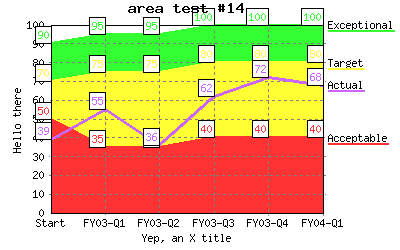

Add additional data areas to above and update legend

%CHART{data="R2:C4..R7:C7" datalabel="box" legend="R1:C4..R1:C7" name="area_14" table="table1" title="area test #14" type="area" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

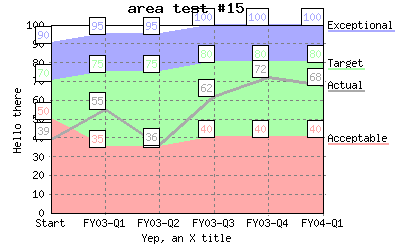

Specify different colors to above. Now are lite red, lite green, lite blue, gray instead of defaults

%CHART{colors="#ffAAAA,#AAffAA,#AAAAff,#AAAAAA" data="R2:C4..R7:C7" datalabel="box" legend="R1:C4..R1:C7" name="area_15" table="table1" title="area test #15" type="area" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

Restore default colors and change datalabel such that only the last area has values in boxes and the 2nd to last has values (no box) to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="area_16" table="table1" title="area test #16" type="area" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

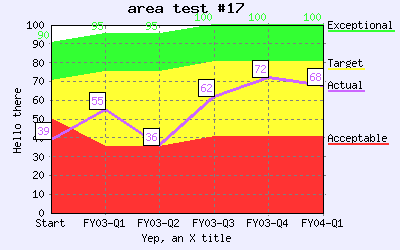

Same as above except specify bgcolor="#EEEEEE"

=%CHART{bgcolor="#EEEEFF" data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="area_17" table="table1" title="area test #17" type="area" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

Change bgcolor="#FFFFFF #EEEEEE"

=%CHART{bgcolor="#FFFFFF #EEEEFF" data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="area_18" table="table1" title="area test #18" type="area" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

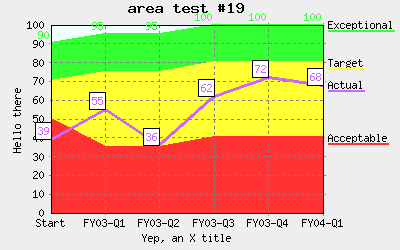

Change bgcolor="#EEEEEE #EEFFEE"

=%CHART{bgcolor="#EEEEEE #EEFFFF" data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="area_19" table="table1" title="area test #19" type="area" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

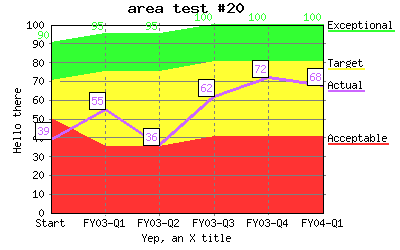

Restore bgcolor and change ygrid = on to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="area_20" table="table1" title="area test #20" type="area" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ygrid="on" ylabel="Hello there" ymax="100" ymin="0"}%

Change ygrid = off to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="area_21" table="table1" title="area test #21" type="area" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

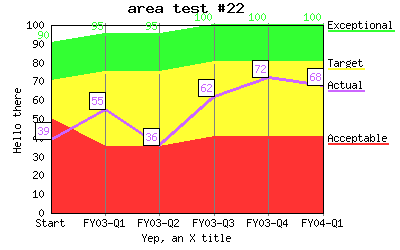

Change xgrid = on to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="area_22" table="table1" title="area test #22" type="area" xaxis="R2:C2..R7:C2" xgrid="on" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

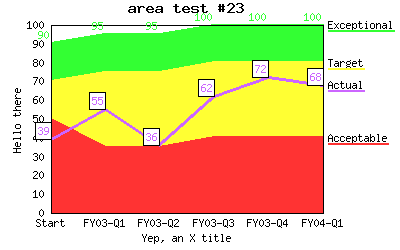

Change xgrid = off to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="area_23" table="table1" title="area test #23" type="area" xaxis="R2:C2..R7:C2" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

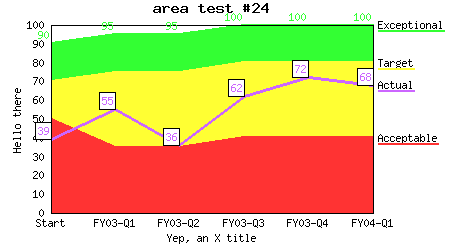

Change width = 450

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="area_24" table="table1" title="area test #24" type="area" width="450" xaxis="R2:C2..R7:C2" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

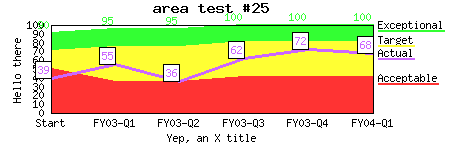

Change height = 150

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" height="150" legend="R1:C4..R1:C7" name="area_25" table="table1" title="area test #25" type="area" width="450" xaxis="R2:C2..R7:C2" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

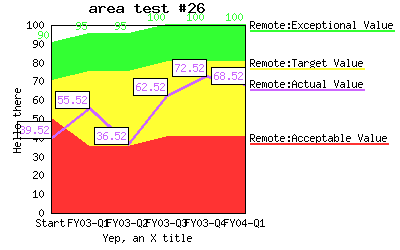

Default width/height. Get data from ChartPluginTestsRemote. Specify table="2" on new topic = ChartPluginTestsRemote. Actual values should show up incremented by 0.52 since data is from a different topic page and the 0.02 denotes the data is from the 2nd table. Legend should show up with Remote since the data on the remote page was set up to include Remote in the legends

%CHART{data="R4:C2..R7:C7" datalabel="off off on box" legend="R4:C1..R7:C1" name="area_26" table="2" title="area test #26" topic="ChartPluginTestsRemote" type="area" xaxis="R2:C2..R2:C7" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

Same as above except add an additional data set (averages) that is calculated by %CALC%. Also shows that since only 4 default area colors are specified, the 5th area reuses the 1st default area color.

%CHART{data="R4:C2..R8:C7" datalabel="off off on box" legend="R4:C1..R8:C1" name="area_27" table="2" title="area test #26" topic="ChartPluginTestsRemote" type="area" xaxis="R2:C2..R2:C7" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

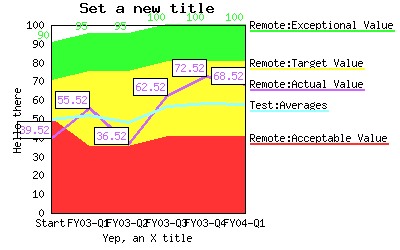

Set title = "Set a new title" to above

%CHART{data="R4:C2..R8:C7" datalabel="off off on box" legend="R4:C1..R8:C1" name="area_28" table="2" title="Set a new title" topic="ChartPluginTestsRemote" type="area" xaxis="R2:C2..R2:C7" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

Same as above except add the alt tag = This is the alt tag

%CHART{alt="This is the alt tag" data="R4:C2..R8:C7" datalabel="off off on box" legend="R4:C1..R8:C1" name="area_29" table="2" title="Set a new title" topic="ChartPluginTestsRemote" type="area" xaxis="R2:C2..R2:C7" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

This is the alt tag

bar tests

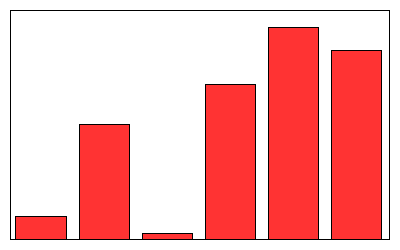

Simple single bar. No other markings at all

%CHART{data="R2:C7..R7:C7" name="bar_1" table="table1" type="bar" ygrid="off"}%

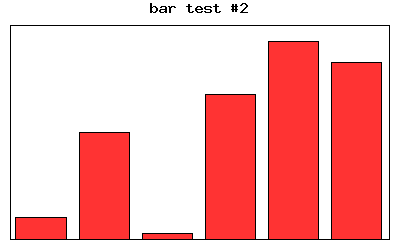

Simple single bar, add title.

%CHART{data="R2:C7..R7:C7" name="bar_2" table="table1" title="bar test #2" type="bar" ygrid="off"}%

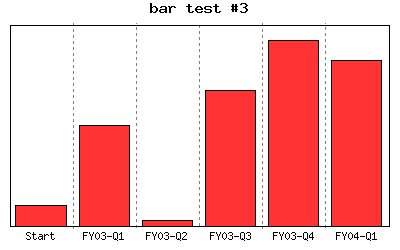

Add X axis to above

%CHART{data="R2:C7..R7:C7" name="bar_3" table="table1" title="bar test #3" type="bar" xaxis="R2:C2..R7:C2" ygrid="off"}%

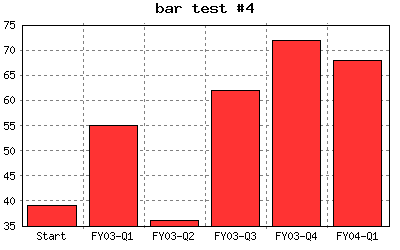

Add Y axis to above

%CHART{data="R2:C7..R7:C7" name="bar_4" table="table1" title="bar test #4" type="bar" xaxis="R2:C2..R7:C2" yaxis="on"}%

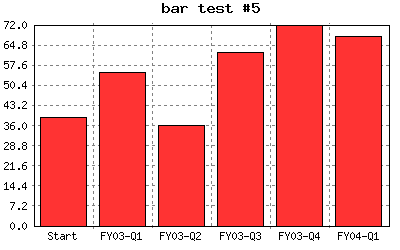

Add ymin = 0 to above

%CHART{data="R2:C7..R7:C7" name="bar_5" table="table1" title="bar test #5" type="bar" xaxis="R2:C2..R7:C2" yaxis="on" ymin="0"}%

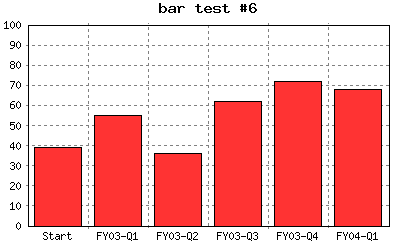

Add ymax = 100 to above

%CHART{data="R2:C7..R7:C7" name="bar_6" table="table1" title="bar test #6" type="bar" xaxis="R2:C2..R7:C2" yaxis="on" ymax="100" ymin="0"}%

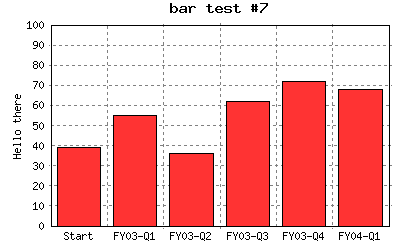

Add ylabel "Hello there" to above

%CHART{data="R2:C7..R7:C7" name="bar_7" table="table1" title="bar test #7" type="bar" xaxis="R2:C2..R7:C2" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

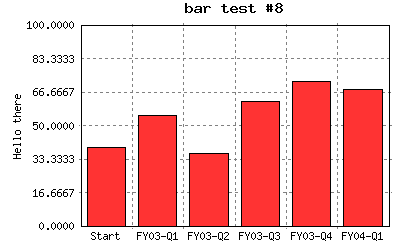

Add numygrids="5" above

%CHART{data="R2:C7..R7:C7" name="bar_8" numygrids="5" table="table1" title="bar test #8" type="bar" xaxis="R2:C2..R7:C2" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

Change numygrids="2" above

%CHART{data="R2:C7..R7:C7" name="bar_9" numygrids="2" table="table1" title="bar test #9" type="bar" xaxis="R2:C2..R7:C2" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

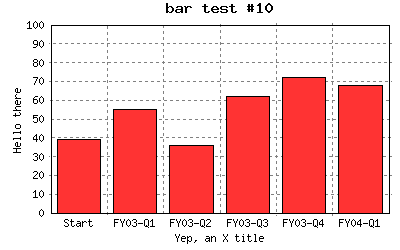

Remove numygrids from above and add xlabel "Yep, an X title" to above

%CHART{data="R2:C7..R7:C7" name="bar_10" table="table1" title="bar test #10" type="bar" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

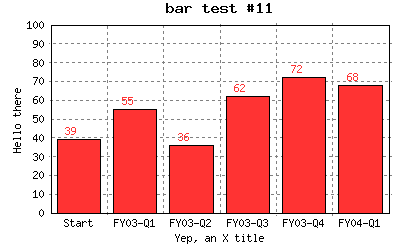

Add datalabel = on to above

%CHART{data="R2:C7..R7:C7" datalabel="on" name="bar_11" table="table1" title="bar test #11" type="bar" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

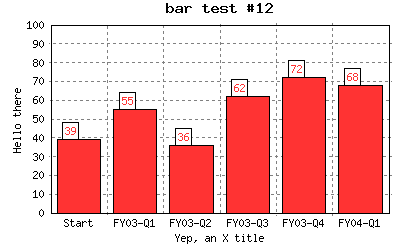

Add datalabel = box to above

%CHART{data="R2:C7..R7:C7" datalabel="box" name="bar_12" table="table1" title="bar test #12" type="bar" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

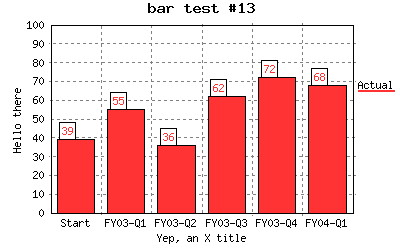

Add legend to above

%CHART{data="R2:C7..R7:C7" datalabel="box" legend="R1:C7..R1:C7" name="bar_13" table="table1" title="bar test #13" type="bar" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

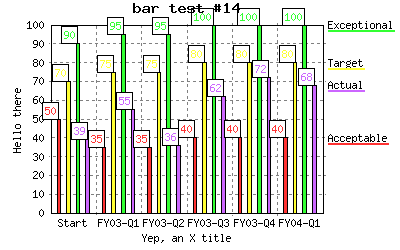

Add additional data bars to above and update legend

%CHART{data="R2:C4..R7:C7" datalabel="box" legend="R1:C4..R1:C7" name="bar_14" table="table1" title="bar test #14" type="bar" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

Specify different colors to above. Now are lite red, lite green, lite blue, gray instead of defaults

%CHART{colors="#ffAAAA,#AAffAA,#AAAAff,#AAAAAA" data="R2:C4..R7:C7" datalabel="box" legend="R1:C4..R1:C7" name="bar_15" table="table1" title="bar test #15" type="bar" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

Restore default colors and change datalabel such that only the last bar has values in boxes and the 2nd to last has values (no box) to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="bar_16" table="table1" title="bar test #16" type="bar" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

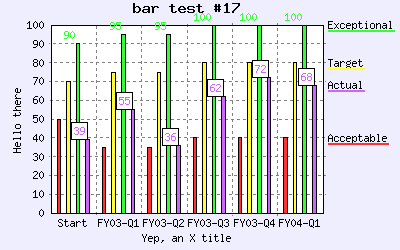

Same as above except specify bgcolor="#EEEEEE"

=%CHART{bgcolor="#EEEEFF" data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="bar_17" table="table1" title="bar test #17" type="bar" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

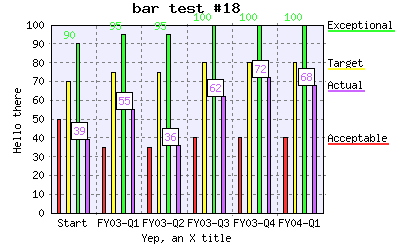

Change bgcolor="#FFFFFF #EEEEEE"

=%CHART{bgcolor="#FFFFFF #EEEEFF" data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="bar_18" table="table1" title="bar test #18" type="bar" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

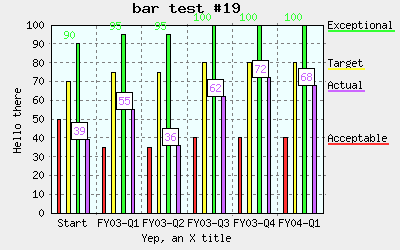

Change bgcolor="#EEEEEE #EEFFEE"

=%CHART{bgcolor="#EEEEEE #EEFFFF" data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="bar_19" table="table1" title="bar test #19" type="bar" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there" ymax="100" ymin="0"}%

Restore bgcolor and change ygrid = on to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="bar_20" table="table1" title="bar test #20" type="bar" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ygrid="on" ylabel="Hello there" ymax="100" ymin="0"}%

Change ygrid = off to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="bar_21" table="table1" title="bar test #21" type="bar" xaxis="R2:C2..R7:C2" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

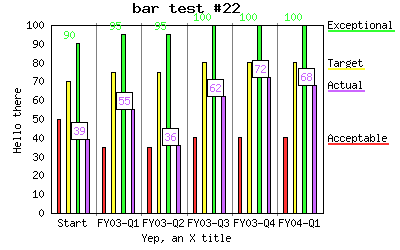

Change xgrid = on to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="bar_22" table="table1" title="bar test #22" type="bar" xaxis="R2:C2..R7:C2" xgrid="on" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

Change xgrid = off to above

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="bar_23" table="table1" title="bar test #23" type="bar" xaxis="R2:C2..R7:C2" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

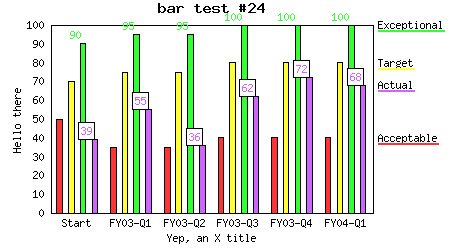

Change width = 450

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" legend="R1:C4..R1:C7" name="bar_24" table="table1" title="bar test #24" type="bar" width="450" xaxis="R2:C2..R7:C2" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

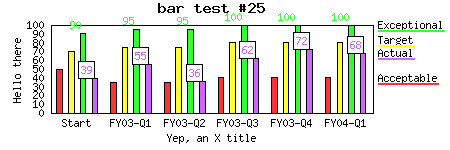

Change height = 150

%CHART{data="R2:C4..R7:C7" datalabel="off off on box" height="150" legend="R1:C4..R1:C7" name="bar_25" table="table1" title="bar test #25" type="bar" width="450" xaxis="R2:C2..R7:C2" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

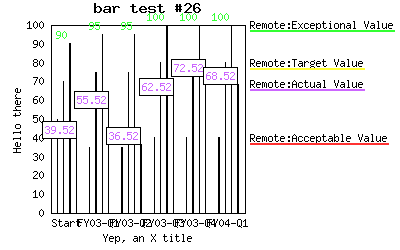

Default width/height. Get data from ChartPluginTestsRemote. Specify table="2" on new topic = ChartPluginTestsRemote. Actual values should show up incremented by 0.52 since data is from a different topic page and the 0.02 denotes the data is from the 2nd table. Legend should show up with Remote since the data on the remote page was set up to include Remote in the legends

%CHART{data="R4:C2..R7:C7" datalabel="off off on box" legend="R4:C1..R7:C1" name="bar_26" table="2" title="bar test #26" topic="ChartPluginTestsRemote" type="bar" xaxis="R2:C2..R2:C7" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

Same as above except add an additional data set (averages) that is calculated by %CALC%. Also shows that since only 4 default bar colors are specified, the 5th bar reuses the 1st default bar color.

%CHART{data="R4:C2..R8:C7" datalabel="off off on box" legend="R4:C1..R8:C1" name="bar_27" table="2" title="bar test #26" topic="ChartPluginTestsRemote" type="bar" xaxis="R2:C2..R2:C7" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

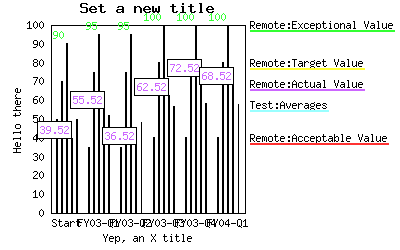

Set title = "Set a new title" to above

%CHART{data="R4:C2..R8:C7" datalabel="off off on box" legend="R4:C1..R8:C1" name="bar_28" table="2" title="Set a new title" topic="ChartPluginTestsRemote" type="bar" xaxis="R2:C2..R2:C7" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

Same as above except add the alt tag = This is the alt tag

%CHART{alt="This is the alt tag" data="R4:C2..R8:C7" datalabel="off off on box" legend="R4:C1..R8:C1" name="bar_29" table="2" title="Set a new title" topic="ChartPluginTestsRemote" type="bar" xaxis="R2:C2..R2:C7" xgrid="off" xlabel="Yep, an X title" yaxis="on" ygrid="off" ylabel="Hello there" ymax="100" ymin="0"}%

This is the alt tag

combo tests

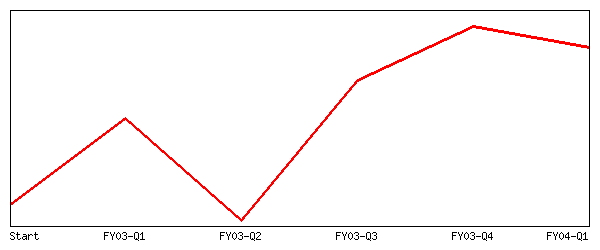

Simple combo graph using table #2. Since no datatype is defined and only a single data set, combo defaults to a single line.

%CHART{data="R7:C2..R7:C7" name="combo_1" table="table2" type="combo" width="600" xaxis="R2:C2..R2:C7" xgrid="off" ygrid="off"}%

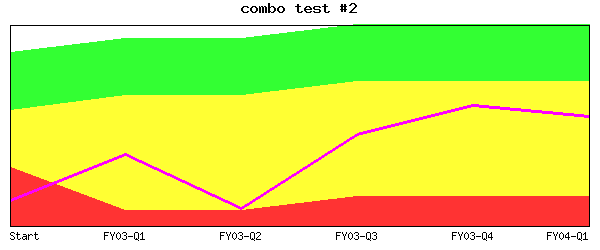

Change so 3 data sets are drawn as areas and the last drawn as a line

%CHART{data="R4:C2..R7:C7" name="combo_2" table="table2" title="combo test #2" type="combo" width="600" xaxis="R2:C2..R2:C7" xgrid="off" ygrid="off"}%

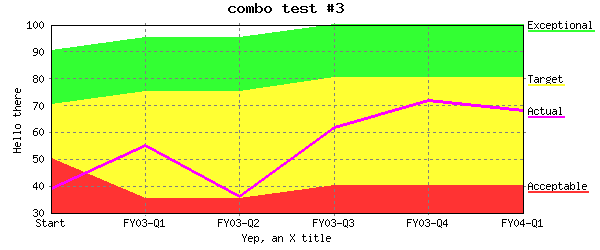

Same as above, adding grid lines and both X and Y axis labels and titles

%CHART{data="R4:C2..R7:C7" legend="R4:C1..R7:C1" name="combo_3" table="table2" title="combo test #3" type="combo" width="600" xaxis="R2:C2..R2:C7" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

Same as above adding subtype="area" which should force all data sets to be drawn as area. Since the last data set would fall behind the previously drawn areas, it is drawn as a line

%CHART{data="R4:C2..R7:C7" legend="R4:C1..R7:C1" name="combo_4" subtype="area" table="table2" title="combo test #4" type="combo" width="600" xaxis="R2:C2..R2:C7" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

Same as above changing subtype="line" which should force all data sets to be drawn as line

%CHART{data="R4:C2..R7:C7" legend="R4:C1..R7:C1" name="combo_5" subtype="line" table="table2" title="combo test #5" type="combo" width="600" xaxis="R2:C2..R2:C7" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

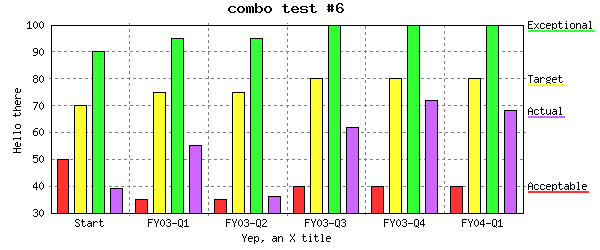

Same as above changing subtype="bar" which should force all data sets to be drawn as bar

%CHART{data="R4:C2..R7:C7" legend="R4:C1..R7:C1" name="combo_6" subtype="bar" table="table2" title="combo test #6" type="combo" width="600" xaxis="R2:C2..R2:C7" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

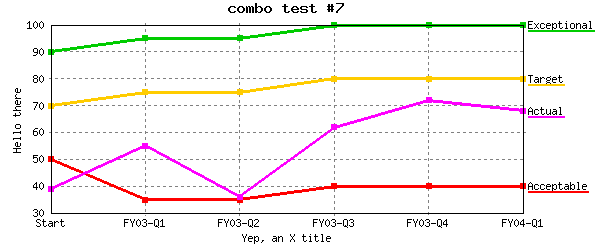

Same as above changing subtype="pline" which should force all data sets to be drawn as pline

%CHART{data="R4:C2..R7:C7" legend="R4:C1..R7:C1" name="combo_7" subtype="pline" table="table2" title="combo test #7" type="combo" width="600" xaxis="R2:C2..R2:C7" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

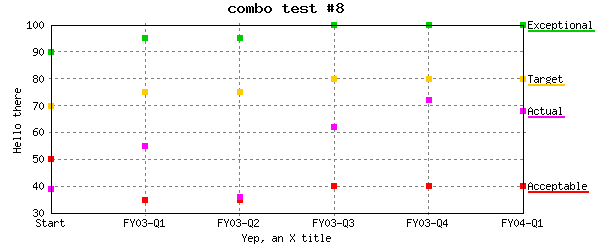

Same as above changing subtype="point" which should force all data sets to be drawn as point

%CHART{data="R4:C2..R7:C7" legend="R4:C1..R7:C1" name="combo_8" subtype="point" table="table2" title="combo test #8" type="combo" width="600" xaxis="R2:C2..R2:C7" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

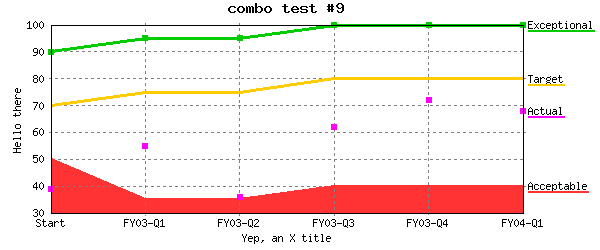

Same as above changing subtype="area line pline point"

%CHART{data="R4:C2..R7:C7" legend="R4:C1..R7:C1" name="combo_9" subtype="area line pline point" table="table2" title="combo test #9" type="combo" width="600" xaxis="R2:C2..R2:C7" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

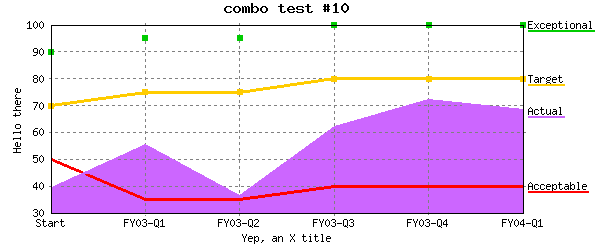

Same as above changing subtype="line pline point area"

%CHART{data="R4:C2..R7:C7" legend="R4:C1..R7:C1" name="combo_10" subtype="line pline point area" table="table2" title="combo test #10" type="combo" width="600" xaxis="R2:C2..R2:C7" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

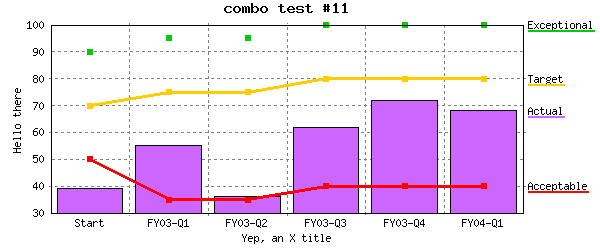

Same as above changing subtype="pline pline point bar"

%CHART{data="R4:C2..R7:C7" legend="R4:C1..R7:C1" name="combo_11" subtype="pline pline point bar" table="table2" title="combo test #11" type="combo" width="600" xaxis="R2:C2..R2:C7" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

Same as above changing subtype="area pline point bar". This should produce an error as you can't combine area and bar subtypes

%CHART{data="R4:C2..R7:C7" legend="R4:C1..R7:C1" name="combo_12" subtype="area pline point bar" table="table2" title="combo test #12" type="combo" width="600" xaxis="R2:C2..R2:C7" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

ChartPlugin error: chart error: name=combo_12: Error: Can't mix 'area' and 'bar' subtypes on the same chart

scatter tests

Simple scatter graph using table #3. Defaults to all data sets drawn as point

%CHART{data="R2:C2..R99:C99" name="scatter_1" table="table3" type="scatter" width="600" xaxis="R2:C1..R99:C1" xgrid="off" ygrid="off"}%

Same as above, adding title, grid lines and both X and Y axis labels and titles

%CHART{data="R2:C2..R99:C99" legend="R1:C2..R1:C99" name="scatter_2" table="table3" title="scatter test #2" type="scatter" width="600" xaxis="R2:C1..R99:C1" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

Same as above adding subtype="line"

%CHART{data="R2:C2..R99:C99" legend="R1:C2..R1:C99" name="scatter_3" subtype="line" table="table3" title="scatter test #3" type="scatter" width="600" xaxis="R2:C1..R99:C1" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

Same as above changing subtype="pline"

%CHART{data="R2:C2..R99:C99" legend="R1:C2..R1:C99" name="scatter_4" subtype="pline" table="table3" title="scatter test #4" type="scatter" width="600" xaxis="R2:C1..R99:C1" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

Same as above changing subtype="point"

%CHART{data="R2:C2..R99:C99" legend="R1:C2..R1:C99" name="scatter_5" subtype="point" table="table3" title="scatter test #5" type="scatter" width="600" xaxis="R2:C1..R99:C1" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

Same as above changing subtype="bar"

%CHART{data="R2:C2..R99:C99" legend="R1:C2..R1:C99" name="scatter_6" subtype="bar" table="table3" title="scatter test #6" type="scatter" width="600" xaxis="R2:C1..R99:C1" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

Same as above changing subtype="point bar line pline"

%CHART{data="R2:C2..R99:C99" legend="R1:C2..R1:C99" name="scatter_7" subtype="point bar line pline" table="table3" title="scatter test #7" type="scatter" width="600" xaxis="R2:C1..R99:C1" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

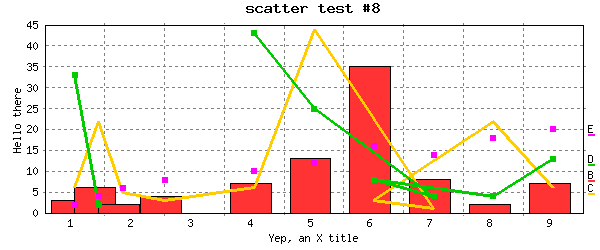

Same as above changing subtype="bar line pline point"

%CHART{data="R2:C2..R99:C99" legend="R1:C2..R1:C99" name="scatter_8" subtype="bar line pline point" table="table3" title="scatter test #8" type="scatter" width="600" xaxis="R2:C1..R99:C1" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

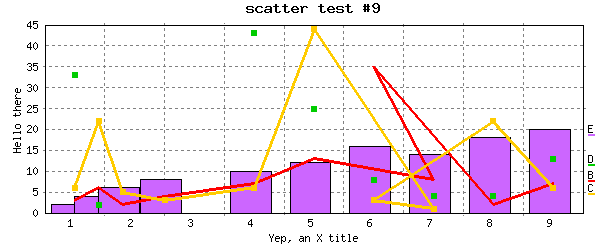

Same as above changing subtype="line pline point bar"

%CHART{data="R2:C2..R99:C99" legend="R1:C2..R1:C99" name="scatter_9" subtype="line pline point bar" table="table3" title="scatter test #9" type="scatter" width="600" xaxis="R2:C1..R99:C1" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

Same as above changing subtype="pline point bar line"

%CHART{data="R2:C2..R99:C99" legend="R1:C2..R1:C99" name="scatter_10" subtype="pline point bar line" table="table3" title="scatter test #10" type="scatter" width="600" xaxis="R2:C1..R99:C1" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

Same as above changing subtype="bar bar bar pline"

%CHART{data="R2:C2..R99:C99" legend="R1:C2..R1:C99" name="scatter_11" subtype="bar bar bar pline" table="table3" title="scatter test #11" type="scatter" width="600" xaxis="R2:C1..R99:C1" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

Same as above changing subtype="area pline point bar". This should produce an error as you can't combine area and bar subtypes

%CHART{data="R2:C2..R99:C99" legend="R1:C2..R1:C99" name="scatter_12" subtype="area pline point bar" table="table3" title="scatter test #12" type="scatter" width="600" xaxis="R2:C1..R99:C1" xlabel="Yep, an X title" yaxis="on" ylabel="Hello there"}%

ChartPlugin error: chart error: name=scatter_12: Error: Can't mix 'area' and 'bar' subtypes on the same chart

New functionality tests

Test various legend placement situations

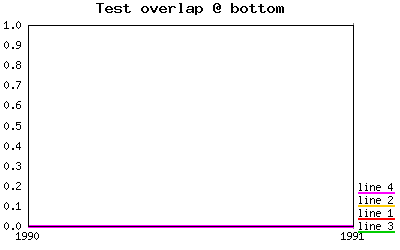

Test that when all lines overlap on the very bottom of the chart, the legends all show up non-overlapped

%CHART{data="R2:C2..R3:C5" legend="R1:C2..R1:C5" name="line_30" table="table4" title="Test overlap @ bottom" type="line" xaxis="R2:C1..R9:C1" yaxis="on" ygrid="off" ymax="1" ymin="0"}%

Test that when two lines overlap in the middle of the chart, the legends get correctly placed

%CHART{data="R2:C2..R5:C5" legend="R1:C2..R1:C5" name="line_31" table="table4" title="Test overlap @ middle" type="line" xaxis="R2:C1..R9:C1" yaxis="on" ygrid="off"}%

Similar to the test above, except the data is changed such that the placement of the legends for the two middle lines should be reversed

%CHART{data="R2:C2..R6:C5" legend="R1:C2..R1:C5" name="line_32" table="table4" title="Test overlap @ middle" type="line" xaxis="R2:C1..R9:C1" yaxis="on" ygrid="off"}%

Test that when 4 lines are close to overlapping and are all located at the top of the chart, the legends get correctly placed.

%CHART{data="R2:C2..R7:C5" legend="R1:C2..R1:C5" name="line_33" table="table4" title="Test overlap @ top" type="line" xaxis="R2:C1..R9:C1" yaxis="on" ygrid="off" ymax="40"}%

Test that when 4 lines do exactly overlap at the top of the chart, the legends get correctly placed.

%CHART{data="R2:C2..R8:C5" legend="R1:C2..R1:C5" name="line_34" table="table4" title="Test overlap @ top" type="line" xaxis="R2:C1..R9:C1" yaxis="on" ygrid="off" ymax="40"}%

Test that the arrangement of legends of 4 lines located at the top of a chart is correct.

%CHART{data="R2:C2..R9:C5" legend="R1:C2..R1:C5" name="line_35" table="table4" title="Test overlap @ top" type="line" xaxis="R2:C1..R9:C1" yaxis="on" ygrid="off" ymax="40"}%

Test that even with a ymax set too low such that the lines go off the top of the chart, the legends still stay on the chart.

%CHART{data="R2:C2..R4:C5" legend="R1:C2..R1:C5" name="line_36" table="table4" title="Test legends falling off top" type="line" xaxis="R2:C1..R9:C1" yaxis="on" ygrid="off" ymax="20"}%

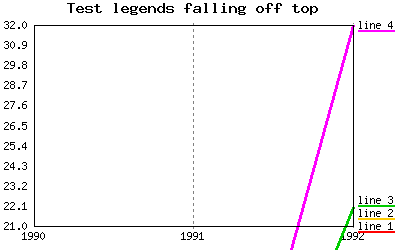

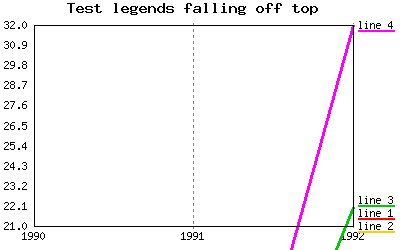

Test that even with a ymin set too high such that some lines do not even show up on the chart because they fall below the chart, the legends still stay on the chart.

%CHART{data="R2:C2..R4:C5" legend="R1:C2..R1:C5" name="line_37" table="table4" title="Test legends falling off top" type="line" xaxis="R2:C1..R9:C1" yaxis="on" ygrid="off" ymin="21"}%

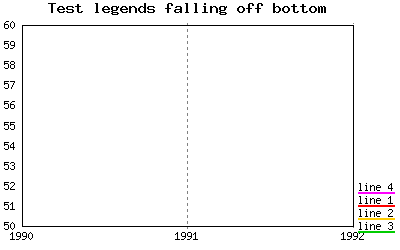

Test extremes that even when ymin is set higher than all data, that the legends still get drawn on the chart.

%CHART{data="R2:C2..R4:C5" legend="R1:C2..R1:C5" name="line_38" table="table4" title="Test legends falling off bottom" type="line" xaxis="R2:C1..R9:C1" yaxis="on" ygrid="off" ymax="60" ymin="50"}%

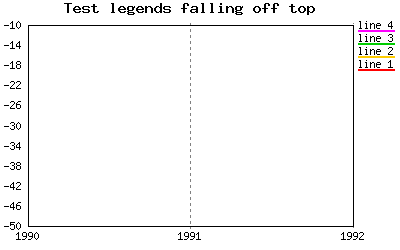

Test extremes that even when ymax is set lower than all data, that the legends still get drawn on the chart.

%CHART{data="R2:C2..R4:C5" legend="R1:C2..R1:C5" name="line_39" table="table4" title="Test legends falling off top" type="line" xaxis="R2:C1..R9:C1" yaxis="on" ygrid="off" ymax="-10" ymin="-50"}%

Test numxgrids and xaxisangle options

Show what happens when there is so much data that the X axis labels overlap

%CHART{data="R2:C2..R99:C5" legend="R1:C2..R1:C5" name="line_40" table="table4" title="Overlapping X labels" type="line" width="200" xaxis="R2:C1..R99:C1" yaxis="on"}%

Take the above graph and specify numxgrids = "3" making the X axis labels more readable

%CHART{data="R2:C2..R99:C5" legend="R1:C2..R1:C5" name="line_41" numxgrids="3" table="table4" title="Change numxgrids" type="line" width="200" xaxis="R2:C1..R99:C1" yaxis="on"}%

Take the first graph and specify xaxisangle = 90, changing the X axis label angle = 90 degrees

%CHART{data="R2:C2..R99:C5" legend="R1:C2..R1:C5" name="line_42" numxgrids="9" table="table4" title="Change xaxisangle" type="line" width="200" xaxis="R2:C1..R99:C1" xaxisangle="90" yaxis="on"}%

Test scale and ytics options

Show how scale=semilog makes the chart easier to read. Since ytics is NOT specified, it defaults to 8.

%CHART{data="R2:C8..R99:C8" legend="R1:C8..R1:C8" name="line_43" scale="semilog" table="table4" title="semilogrithmic scale" type="line" xaxis="R2:C1..R99:C1" yaxis="on"}%

Show the above plotted data on a linear scale with ytics=1

%CHART{data="R2:C8..R99:C8" legend="R1:C8..R1:C8" name="line_44" table="table4" title="base10 scale with ytics set to 1" type="line" xaxis="R2:C1..R99:C1" yaxis="on" ytics="1"}%

Test defaultdata option

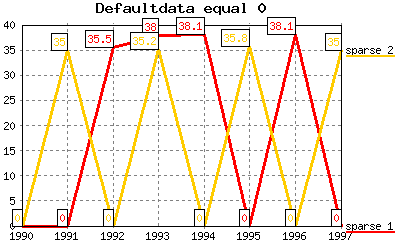

Show what happens when there is sparse data. defaultdata = 0

%CHART{data="R2:C6..R99:C7" datalabel="box" defaultdata="0" legend="R1:C6..R1:C7" name="line_45" table="table4" title="Defaultdata equal 0" type="line" xaxis="R2:C1..R99:C1" yaxis="on"}%

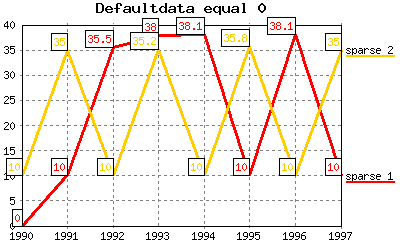

Same as above, but now defaultdata = 10

%CHART{data="R2:C6..R99:C7" datalabel="box" defaultdata="10" legend="R1:C6..R1:C7" name="line_46" table="table4" title="Defaultdata equal 0" type="line" xaxis="R2:C1..R99:C1" yaxis="on"}%

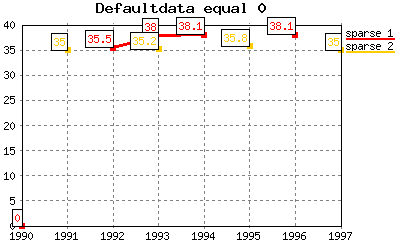

Same as above, but now defaultdata = "none" (empty)

%CHART{data="R2:C6..R99:C7" datalabel="box" defaultdata="none" legend="R1:C6..R1:C7" name="line_47" table="table4" title="Defaultdata equal 0" type="line" xaxis="R2:C1..R99:C1" yaxis="on"}%

Test gridcolor option

Show default grid color with solid grid lines.

%CHART{data="R2:C7..R7:C7" name="line_48" table="table1" title="line test #48" type="line" xaxis="R2:C2..R7:C2" xgrid="on" ygrid="on"}%

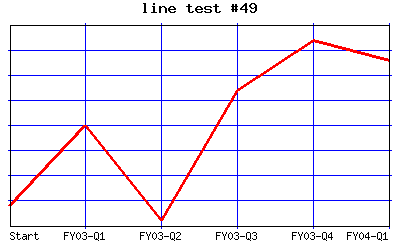

Change the grid color to blue.

%CHART{data="R2:C7..R7:C7" gridcolor="#0000FF" name="line_49" table="table1" title="line test #49" type="line" xaxis="R2:C2..R7:C2" xgrid="on" ygrid="on"}%

Change the grid color back to the default but make them dotted

%CHART{data="R2:C7..R7:C7" name="line_50" table="table1" title="line test #50" type="line" xaxis="R2:C2..R7:C2" xgrid="dot" ygrid="dot"}%

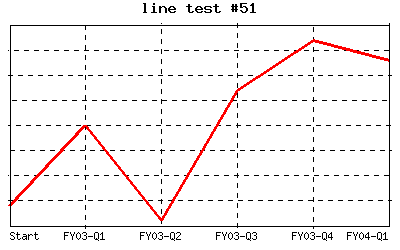

Change the grid style to be 5 black dots and 5 transparent dots.

%CHART{data="R2:C7..R7:C7" gridcolor="#000000, #000000, #000000, #000000, #000000, transparent, transparent, transparent, transparent, transparent," name="line_51" table="table1" title="line test #51" type="line" xaxis="R2:C2..R7:C2" xgrid="dot" ygrid="dot"}%

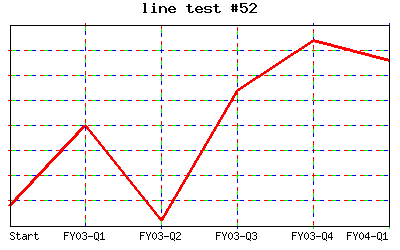

Change the grid style to be 4 red dots, 4 green dots, 4 blue dots and 4 transparent dots.

%CHART{data="R2:C7..R7:C7" gridcolor="#FF0000, #FF0000, #FF0000, #FF0000, #00FF00, #00FF00, #00FF00, #00FF00, #0000FF, #0000FF, #0000FF, #0000FF, transparent, transparent, transparent, transparent," name="line_52" table="table1" title="line test #52" type="line" xaxis="R2:C2..R7:C2" xgrid="dot" ygrid="dot"}%

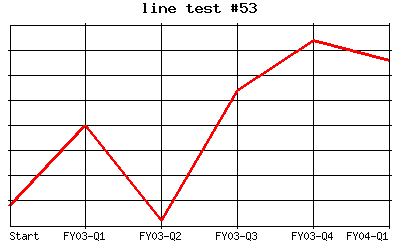

Change the grid style to be 1 black dot which basically makes a solid line

%CHART{data="R2:C7..R7:C7" gridcolor="#000000" name="line_53" table="table1" title="line test #53" type="line" xaxis="R2:C2..R7:C2" xgrid="dot" ygrid="dot"}%

Error handling tests

Description Expected Output Output
no parameters passed to CHART

%CHART{}%

ChartPlugin error: parameter name must be specified </ p> ChartPlugin error: parameter name must be specified
Define type but name not specified

%CHART{type="bar"}%

ChartPlugin error: parameter name must be specified </ p> ChartPlugin error: parameter name must be specified
Invalid type of badtype

%CHART{type="badtype"}%

ChartPlugin error: Invalid value of badtype for parameter type </ p> ChartPlugin error: Invalid value of badtype for parameter type
Missing topic page

%CHART{name="err1" topic="DoesNotExist" type="line"}%

ChartPlugin error: Error retrieving Foswiki topic DoesNotExist? </ p> ChartPlugin error: Error retrieving Foswiki topic System.DoesNotExist
Missing web

%CHART{name="err1" type="line" web="DoesNotExist"}%

ChartPlugin error: Error retrieving Foswiki topic ChartPluginTests? </ p> ChartPlugin error: Error retrieving Foswiki topic DoesNotExist?.ChartPluginTests
Invalid table number

%CHART{name="err1" table="999" type="line"}%

ChartPlugin error: parameter table is not valid table; the specified table '999' does not exist. </ p> ChartPlugin error: parameter table is not valid table; the specified table '999' does not exist.
No data specified

%CHART{name="err1" type="line"}%

ChartPlugin error: parameter data must be specified </ p> ChartPlugin error: parameter data must be specified
invalid xaxis value

%CHART{data="R2:C4..R7:C7" name="err1" type="line" xaxis="R2:C4..R7:C7"}%

ChartPlugin error: parameter xaxis specifies multiple rows and columns. </ p> ChartPlugin error: parameter xaxis specifies multiple (6X4) rows and columns.
invalid legend

%CHART{data="R1:C1..R2:C2" legend="R1:C1..R2:C2" name="err1" type="line" xaxis="R1:C1..R2:C2"}%

ChartPlugin error: parameter legend specifies multiple rows and columns. </ p> ChartPlugin error: parameter legend specifies multiple (2) rows.
ymin = =ymax such that there is no chart height

%CHART{data="R1:C1..R2:C2" name="err1" type="line" xaxis="R1:C1..R1:C2" ymax="10" ymin="10"}%

ChartPlugin error: chart error: name=err1: Chart height = 0 (ymin(10) == ymax(10)) </ p> ChartPlugin error: chart error: name=err1: Chart height = 0 (ymin(10) == ymax(10))
xmin = =xmax such that there is no chart width

%CHART{data="R2:C4..R7:C4" name="err1" type="scatter" xaxis="R2:C3..R7:C3"}%

ChartPlugin error: chart error: name=err1: Chart width = 0 (xmin(0) = xmax(0)) </ p> ChartPlugin error: chart error: name=err1: Chart width = 0 (xmin(0) == xmax(0))
Use an invalid xaxis range

%CHART{data="R2:C4..R7:C7" name="err1" xaxis="R2:C2"}%

ChartPlugin error: parameter xaxis value of 'R2:C2' is not valid </ p>
Use an invalid data range

%CHART{data="R2:C4" name="err1"}%

ChartPlugin error: parameter data value of 'R2:C4' is not valid </ p> ChartPlugin error: chart error: name=err1: Error: Number of data points needs to be > 1
Use an invalid legend range

%CHART{data="R2:C4..R7:C7" legend="R1:C4" name="err1"}%

ChartPlugin error: parameter legend contains an invalid value 'R1:C4'. </ p> ChartPlugin error: parameter legend contains an invalid value 'R1:C4' since it specifies 1 legends and there are 4 data sets.
scale=semilog and data <= 0

%CHART{data="R2:C3..R7:C7" name="err1" scale="semilog"}%

ChartPlugin error: data (0) <= 0 not valid when scale=semilog </ p> ChartPlugin error: data (0) <= 0 not valid when scale=semilog
spacer
This site is powered by FoswikiCopyright © by the contributing authors. All material on this site is the property of the contributing authors.
Ideas, requests, problems regarding Wiki? Send feedback
Syndicate this site RSS ATOM
